Case Studies

Discover how researchers worldwide are using μVeNUS to make groundbreaking discoveries across diverse fields of biological research.

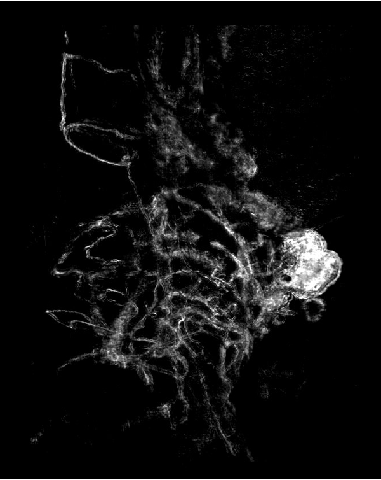

Light-Sheet Laser Speckle Autocorrelation Imaging for Monitoring Dynamic Blood Flow

Pioneering research combining light-sheet microscopy with laser speckle autocorrelation imaging to achieve unprecedented visualization and quantification of dynamic blood flow in complex vascular networks. This innovative approach enables non-invasive, real-time monitoring of microcirculation with exceptional spatial and temporal resolution.

Technical Highlights:

Combined brightfield and speckle imaging PIV-enhanced flow analysis 3D blood flow mapping Optical sectioning capability

Key Results:

✓ Blood Velocity Quantification:Simultaneous brightfield transmission and laser speckle imaging enables cross-validation and calibration for accurate velocity measurements
✓ Flow Direction Identification:Particle imaging velocimetry (PIV) applied to velocity image stacks significantly reduces noise compared to optical speckle image velocimetry (OSIV)
✓ 3D Vasculature Reconstruction:Inherent optical sectioning of light-sheet illumination enables full three-dimensional spatial reconstruction of blood flow distribution throughout the vascular network
✓ Real-time hemodynamic analysis with minimal tissue damage

Read Full Content Download PDF

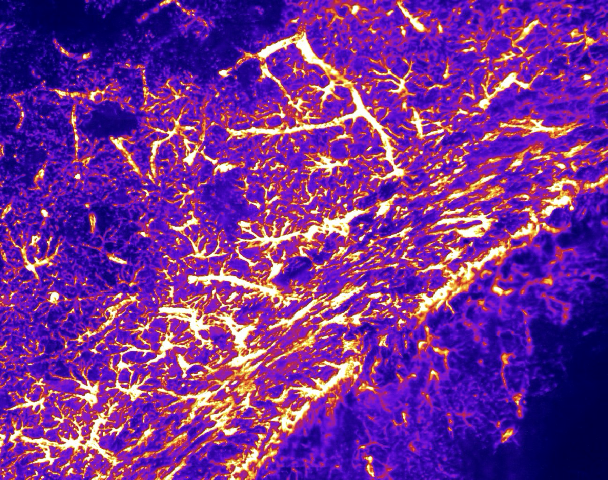

Mouse Brain Astrocytes Imaging

High-resolution fluorescence imaging of astrocyte networks in mouse brain tissue, revealing the intricate three-dimensional architecture and spatial organization of these critical glial cells. This study demonstrates the power of light-sheet microscopy in visualizing complex cellular networks deep within neural tissue with minimal phototoxicity.

Technical Highlights:

Deep tissue imaging Minimal phototoxicity 3D network reconstruction Cell-cell interaction mapping

Key Results:

✓ Comprehensive 3D mapping of astrocyte morphology and distribution patterns across brain regions
✓ Visualization of fine astrocytic processes and end-feet connections to blood vessels
✓ Identification of astrocyte-neuron spatial relationships and interaction zones
✓ Long-term imaging with preserved tissue viability and minimal photobleaching
✓ Quantitative analysis of astrocyte coverage and territorial domains

Read Full Content Download PDF

Whole-Body Fluorescence Tile Imaging of Large Zebrafish Larvae

Large-scale fluorescence imaging demonstrating advanced tile-scanning capabilities for complete organism visualization. This comprehensive study showcases multi-segment imaging and multi-angle reconstruction of zebrafish larvae, enabling systematic analysis of organ development, tissue patterning, and morphological changes across the entire body.

Technical Highlights:

Large field-of-view tile scanning Multi-angle 3D reconstruction Whole-organism imaging Developmental tracking

Key Results:

✓ Seamless tile-scanning across multiple body segments for complete organism coverage
✓ Multi-angle imaging (0°-300°) enables full 3D reconstruction and eliminates blind spots
✓ Identification of organ-specific fluorescence patterns and developmental landmarks
✓ High-throughput screening capability for developmental studies and drug testing
✓ Quantitative morphometric analysis of whole-body developmental progression

Read Full Content Download PDF

Become a Featured Researcher

Share your breakthrough discoveries with the global scientific community. Join the ranks of leading research teams using μVeNUS to advance science.

Share Your Success Story
